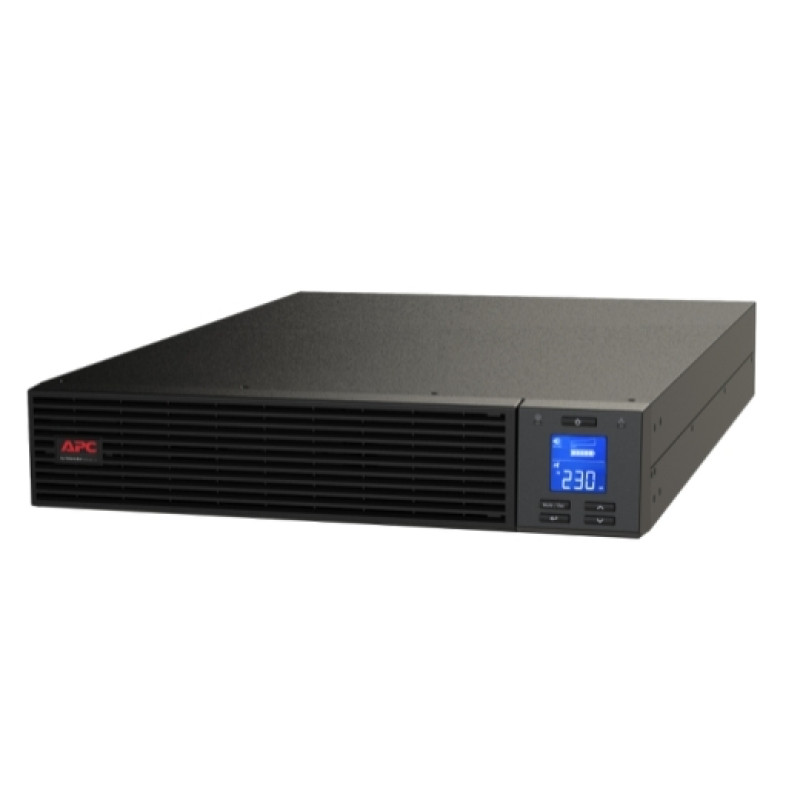

APC Easy UPS 1000VA/800W Online UPS, 2U Rackmount, 230V/10A Input, 3x IEC C13 Outlets, Lead Acid Battery, W/ Rail Kit

APC Easy UPS On-Line, 1000VA/800W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/ rail kit This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Run time for load 800 W 3min 49s

Max. Capacity Used 100 %

Main Input Voltage 230 V

Other Input Voltage 220 V, 240 V

Main Output Voltage 230 V

Other Output Voltage 220 V, 240 V

Rated power in W 800 W

Rated power in VA 1000 VA

Input Connection Type IEC 60320 C14

Output connection type 3 IEC 60320 C13

Number of rack unit 2U

Cable length 1.50 m

Number of cables 1

Provided equipment, 1 IEC 60320 C13 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, 1 rack mounting brackets, 1 rack mounting support rails user manual Input voltage limits 10...285 V half load, 160...280 V full load

Network frequency 40...70 Hz auto sensing

Ambient air temperature for operation 0…40 °C

Relative humidity 0…95 % non-condensing

Operating altitude 0...3000 m

Ambient air temperature for storage -20…50 °C

Storage Relative Humidity 0…95 % non-condensing

Storage altitude 0…15000 m

Acoustic level 50 dBA

Heat dissipation 372 Btu/h

IP degree of protection

Mounting mode- Rack mounted

Replacement Battery- APCRBCV200

Compatible NMC- AP9544, SRVSMB001, VGL9901I
