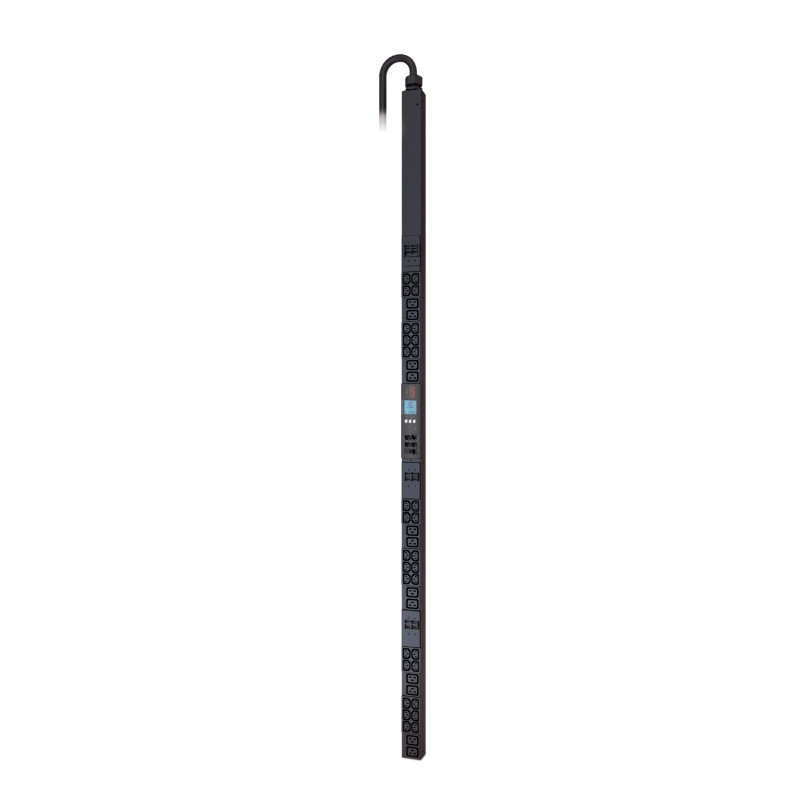

APC Netshelter Metered Rack PDU, 0U, 230V/24A Input, 12x IEC C19 & 30x IEC C13 Outlets

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Colour Black

PDU type Metered

Cord length 1.83 m

Provided equipment- Installation guide, Rack mounting brackets, Serial configuration cable, Safety guide

Input Voltage 400 V 3 phases

Output Voltage 230 V

Rack units 0U

Mounting position Vertical

Max line current 32 A

Input current limits 32 A

Load capacity 22000 VA

Network frequency 50/60 Hz

Total number of outlets 30 IEC 60320 C13, 12 IEC 60320 C19

Product certifications0 VCCI class A, VDE

Standards- EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC part 15 class A, ICES-003

Ambient air temperature for operation -5…60 °C

Relative humidity 5…95 %

Operating altitude 0...10000 ft

Ambient air temperature for storage -25…65 °C

Storage Relative Humidity 5…95 %

Storage altitude 0.00…15240.00 m

Mounting mode- Rack mounted

Compatible PDU- AP8000BLU, AP8000RED, AP8702R-WW, AP8702S-WW, AP8702S-WWX340

Compatible Sensors- AP9335T, AP9335TH

Compatible Mounting- AR7711
