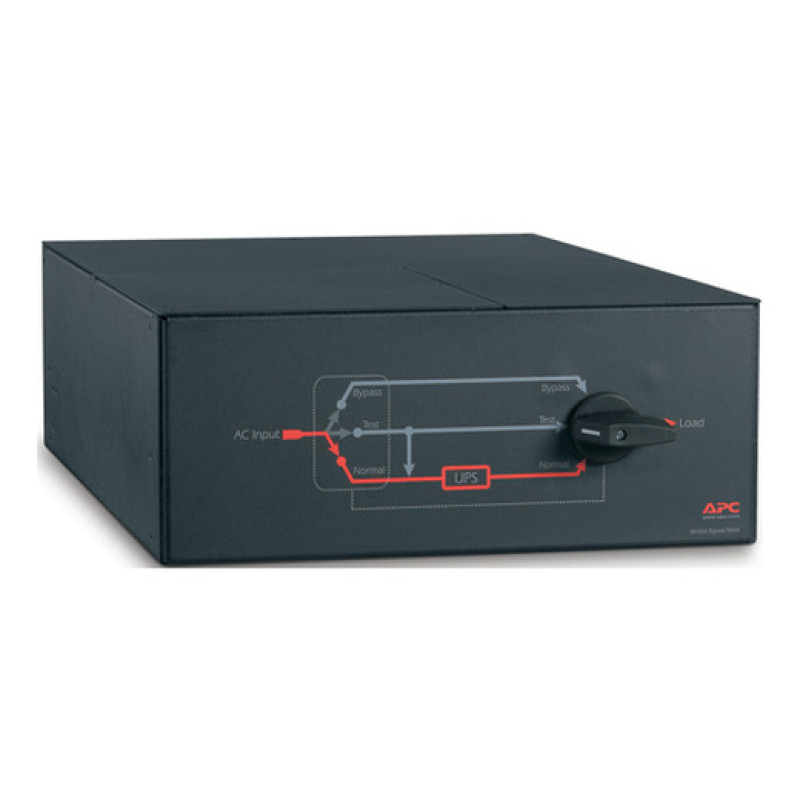

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output

Main Input Voltage 200 V 208 V 230 V 480 V 3 phases

Main Output Voltage 120 V 200 V 208 V 230 V

Other Output Voltage 220 V 240 V

Output connector type Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1, Hard wire 4-wire (2P + N + E) 1

Number of rack unit 4U

Number of cables 1

Provided equipment Installation guide

Rack mounting brackets User manual

Network frequency 50/60 Hz

Number of input connectors 1 hard wire 3-wire (H N + E), 1 hard wire 3-wire (2P + E), 1 hard wire 4-wire (2P + N + E), 1 hard wire 5-wire (3P + N + E)

Permissible voltage 200…240 V

Max line current 100 A

Input current limits 100 A

Load capacity 20000 VA

Power factor 0…1

Max current draw 100 A

Protection type Circuit breaker

Efficiency 99 %

Product certifications CSA GOST

Ambient air temperature for operation -20…50 °C

Relative humidity 0…95 %

Operating altitude 0...15000 ft

Ambient air temperature for storage -40…65 °C

Storage Relative Humidity 0…95 %

Storage altitude 0.00…15240.00 m

Mounting mode- Rack mounted
