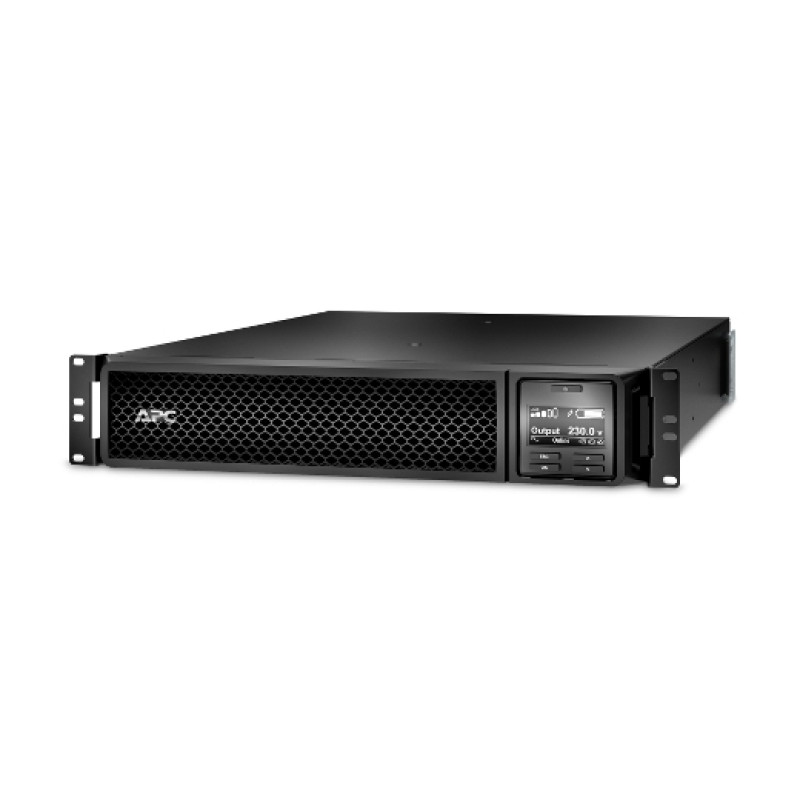

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 230V, 8x C13+2x C19 IEC outlets, Network Card, Extended runtime, W/ rail kit

APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 230V, 8x C13+2x C19 IEC outlets, Network Card, Extended runtime, W/ rail kit This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 3000VA/2700W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 2U rackmount SRT has a preinstalled Network Management Card in the Smart Slot for UPS network-based monitoring and management. PowerChute network shutdown provides graceful, unattended shutdown of critical IT equipment ranging from physical servers and virtual machines to HCI cluster. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 60320 C13, 2x IEC 60320 C19 outlets, and 2x IEC jumpers.

Main Input Voltage 230 V

Other Input Voltage 220 V, 240 V

Main Output Voltage 230 V

Other Output Voltage 220 V 240 V

Rated power in W 2700 W

Rated power in VA 3000 VA

Input Connection Type- BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P Output connection type- 8 IEC 60320 C13, 2 IEC Jumpers, 2 IEC 60320 C19

Number of rack unit 2U

Cable length 2.44 m

Number of cables 1

Provided equipment- CD with software, Documentation CD, Installation guide, Network management card, Rack mounting brackets, Rack mounting support rails, USB cable, Warranty card

Ambient air temperature for operation 0…40 °C

Relative humidity 0…95 % non-condensing

Operating altitude 0...10000 ft

Ambient air temperature for storage -15…45 °C

Storage Relative Humidity 0…95 % non-condensing

Storage altitude 0.00…15240.00 m

Acoustic level 55 dBA

Heat dissipation

703 Btu/h

IP degree of protection IP20

Replacement Battery -APCRBC152

Compatible PDU- AP6003A, AP6015A, AP6020A, AP6120A, AP7552

Compatible Service bypass panels-SBP3000RMHW, SBP3000RMI, SBP5000RMI2U

Compatible Sensors- AP9335T, AP9335TH

Compatible NMC -AP9613, AP9620, AP9640, AP9641, AP9643, AP9810

Compatible Mounting- SRTRK3, SRTRK4
