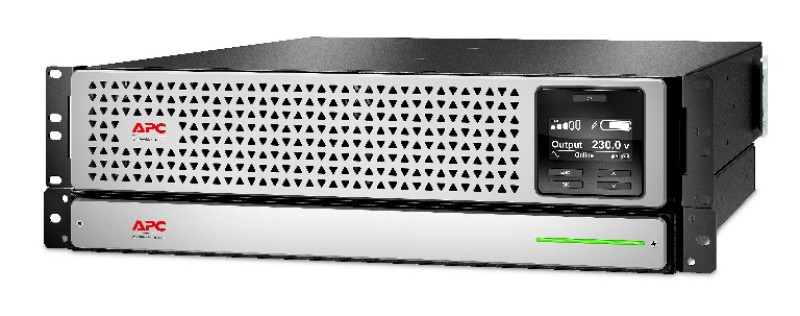

APC SRTL1500RMXLI, Smart UPS, 1500VA, 1350 Watts, 230VA, Li-Ion Lithium, Rackmount, Double Conversion Online Sine Wave

Output

Output Power Capacity

1350 Watts / 1500 VA

Max Configurable Power (Watts)

1350 Watts / 1500 VA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240V

Crest Factor

Double Conversion Online

Waveform Type

Sine wave

Output Connections

(8) IEC 320 C13 (Battery Backup)

Bypass

Built-in Bypass

Input

Nominal Input Voltage

230V

Input Frequency

40 - 70 Hz (auto sensing)

Input Connections

IEC-320 C14

Input voltage range for main operations

50-150 (40% Load) V , 80 - 150 V

Other Input Voltages

220 , 240

Batteries & Runtime

Battery Type

Li-ion

Typical recharge time

6 hour(s)

Nominal Battery Voltage

48V

Communications & Management

Interface Port(s)

RJ-45 Serial , Smart-Slot , USB

Available SmartSlot™ Interface Quantity

1

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Surge Protection and Filtering

Surge energy rating

340 Joules

Physical

Maximum Height

• 0 mm

Maximum Width

• 0 mm

Maximum Depth

• 0 mm

Rack Height

3 U

Net Weight

• 53 kg

Shipping Weight

• 86 kg

Shipping Height

• 0 mm

Shipping Width

• 0 mm

Shipping Depth

• 0 mm

Color

Black

Units per Pallet

• 0

Environmental

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95 (non-condensing) %

Operating Elevation

0-3000 meters

Storage Temperature

• 15 - 45 °C

Storage Relative Humidity

0 - 95 (non-condensing) %

Storage Elevation

0-15000 meters

Audible noise at 1 meter from surface of unit

• 000 dB

Online Thermal Dissipation

• 000 BTU/hr

Protection Class

IP 20

Conformance

Approvals

CE , CE Mark , EAC , RCM , VDE

Standard warranty

5 year repair or replace

Sustainable Offer Status

RoHS

Compliant

REACH

Battery Directive

C
