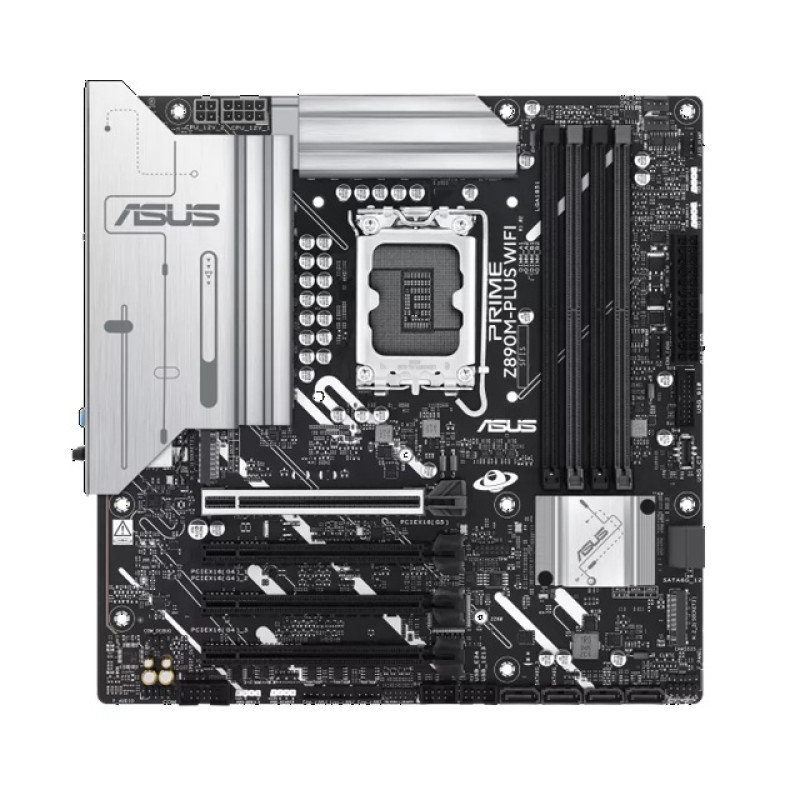

ASUS PRIME Z890M-PLUS WIFI-CSM LGA1851 mATX Motherboard, DDR5 256GB, PCIe 5.0, 3×M.2, 2.5GbE, Wi-Fi 7, USB 20Gbps Type-C

ASUS PRIME Z890M-PLUS WIFI-CSM LGA1851 mATX Motherboard, DDR5 256GB, PCIe 5.0, 3×M.2, 2.5GbE, Wi-Fi 7, USB 20Gbps Type-C ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

SPECIFICATIONS

Model

PRIME Z890M-PLUS WIFI-CSM

CPU

Supports Intel® Core™ Ultra Processors(Series 2), LGA1851*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5

Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory Profile (XMP)

ASUS Enhanced Memory Profile III(AEMPIII)

Graphics

1 x DisplayPort**

1 x HDMI™ port***

1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• *Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• **Supports 4K@60Hz as specified in HDMI 2.1.
• ***Supports max. 4K@120Hz as specified in DisplayPort 1.4.
• **** VGA resolution support depends on processors' or graphic cards' resolution.

Ethernet

1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

Special Features

ASUS 5X PROTECTION III

ASUS 5X PROTECTION III

• DIGI+ VRM (- Digital power design with DrMOS)
• LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O

ASUS Q-Design

• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot

ASUS Thermal Solution

• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• ProCool
• Pre-mounted I/O shield

Aura Sync

• Aura RGB header
• Addressable Gen 2 headers

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows 11 (22H2 & later)

Form Factor

mATX Form Factor

• 6 inch x 9.6 inch (24.4 cm x 24.4 cm)
