Description

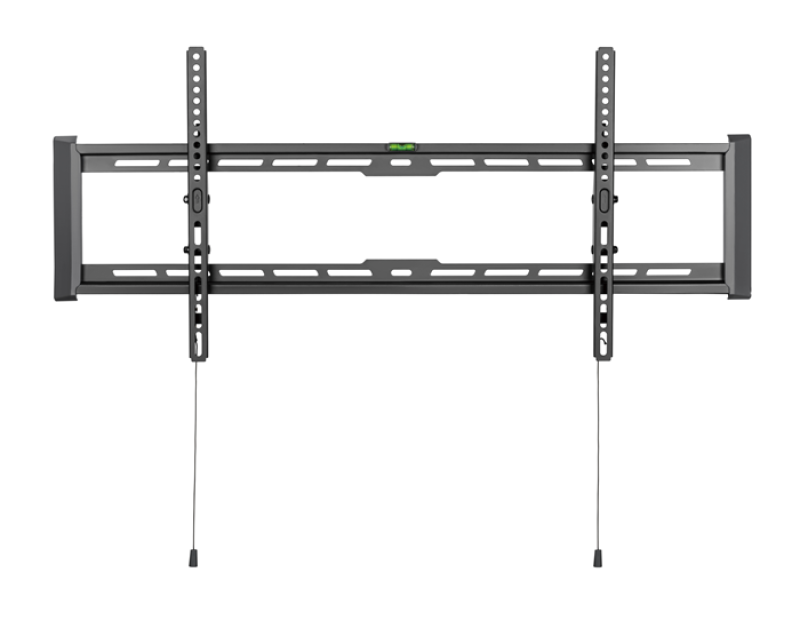

Brateck Ultra-Slim and Heavy-Duty TV Wall Mount For 43'-90' up to 75KG, VESA 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400 Black
FEATURES:
?Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
?Heavy-Duty Construction: provides extra strength and durability
?Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
?Decorative Covers: for a more elegant look
?Ultra-slim design
?Leveling adjustments: allow TV to be perfectly positioned after hanging
?Magnetic Strap End: hides itself when not in use.
?Bubble level included
SPECIFICATIONS
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel, Plastic
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059' cold-rolled sheet,Wall Plate THK=0.059' cold-rolled sheet)
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: 47x970x430mm (1.9'x38.2'x16.9')
Fit Screen Size: 43'-90'
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400
Max. Mounting Hole: 868x405
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 47mm (1.9')
Screen Level: 8mm
Tilt Range: +4°~-10°
Screen Level: 8mm
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
