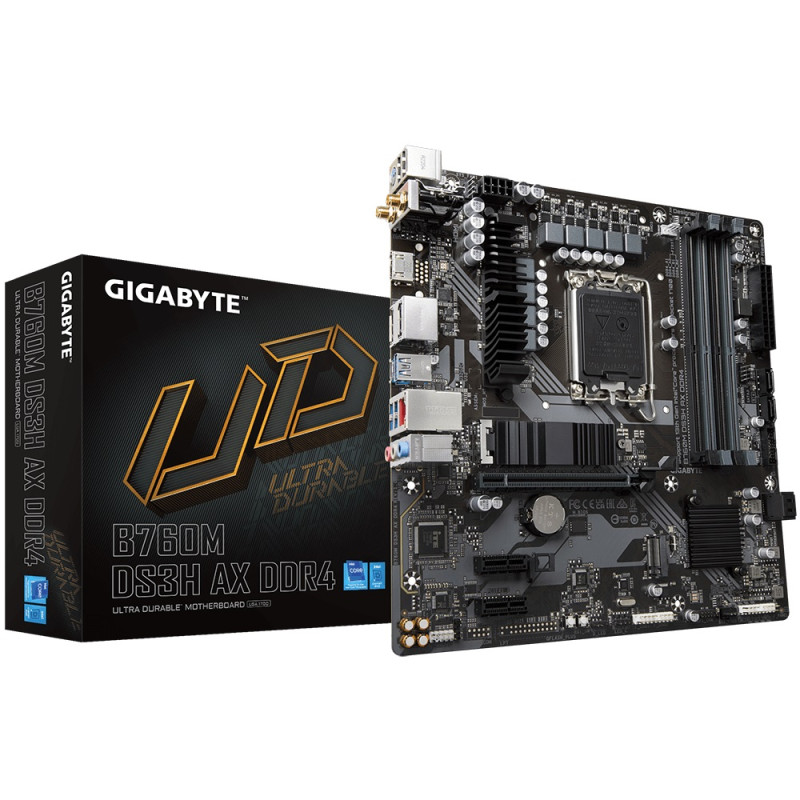

Gigabyte B760M DS3H AX DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0, 1x T

Gigabyte B760M DS3H AX DDR4 Intel LGA 1700 m-ATX Motherboard, 4x DDR4 ~128GB, 1x PCI-E x16, 1x PCI-E x1, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0, 1x Type-C

Specification:

CPU

L3 cache varies with CPU

Chipset

Intel® B760 Express Chipset

Memory

Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Onboard Graphics

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Support for HDMI 2.0 version and HDCP 2.3.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

• Support for DisplayPort 1.2 version and HDCP 2.3

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

• Support for DisplayPort 1.2 version.

Expansion Slots

1 x PCI Express x16 slot

2 x PCI Express x1 slots

Storage Interface

2 x M.2 connector

4 x SATA 6Gb/s connectors

Back Panel Connectors

2 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (2T2R)

1 x HDMI port

2 x DisplayPorts

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
