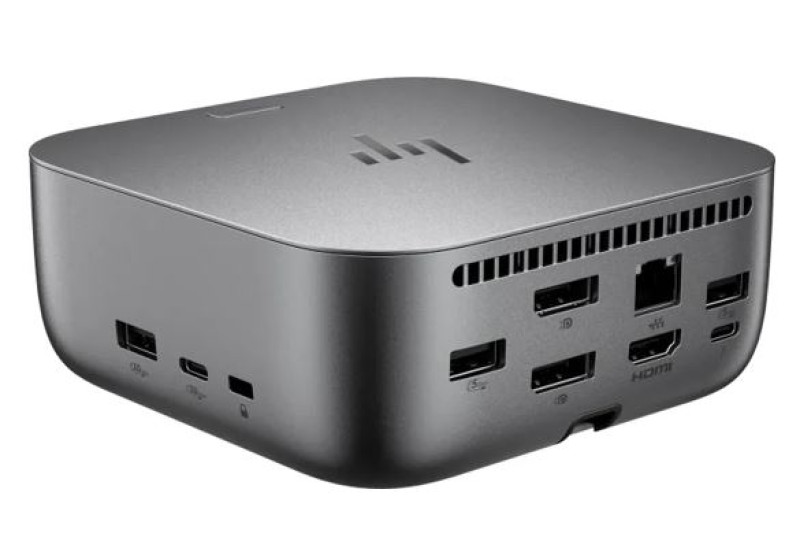

HP Thunderbolt 4 G6 Dock 100W Power Delivery supports 4 displays HDMI DisplayPort USB-C RJ-45 for Workstation
| Cable length | 1 m |
|---|---|
| Cable type | 1 back Thunderbolt™ 4 cable to connect to host system (up to 100 W USB Power Delivery) |
| Cartons per layer | 28 |
| Cartons per pallet | 5 (air); 10 (ocean) |
| Certified collaboration software | Intel® Thunderbolt™ 4 |
| Compatibility | Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more. |
| Compatibility Statement Note | Our docks are tested and validated with most HP USB-C and Thunderbolt 4 systems as well as tested with select 3rd party systems like Dell, Lenovo, and Apple. Contact your local sales representative to learn more. |
| Compatible Operating Systems | Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS |
| Connection type | Thunderbolt™ 4 |
| Country of origin | Made in China or Thailand |
| Dimensions (W x D x H) | 12.1 x 12.1 x 4.95 cm |
|---|---|
| Display support | Up to 3 external displays and 1 PC display or up to 4 external displays |
| Displays supported | Quad monitor |
| Drivers included | Intel® NIC driver; Realtek NIC driver (ARM); Realtek NIC driver (Windows) |
| I/O Port location | Rear |
| LED Front LED bar | RGB LED (white, blue, amber, green, red); Power button: RGB LED (white, blue, amber, green, red) |
| Management features | HP CMSL; Disconnected Firmware updates; eTag; PXE Boot; Wake on LAN (from the Off, Sleep or Hibernation states); MAC address pass-through (from the On, Off, Sleep or Hibernation states); LAN/WLAN switching; Disable LAN; Event messaging |
| Management Software | Poly Lens with automatic firmware updates |
| Manufacturer Warranty | HP three-year limited warranty |
| Material Type for item | FERT |
| Multiple order quantity | 1 |
| Non-Operating Humidity Range | 5 to 95% non-condensing |
| Operating altitude | -15 to 3,048 m |
|---|---|
| Operating humidity range | 10 to 90% non-condensing |
| Operating temperature range | 32 to 95°F |
| Operating voltage | 19.5 V |
| Package dimensions (W x D x H) | 39.6 x 17.1 x 9.5 cm |
| Package weight | 1.08 kg |
| Pallet (layers) | 6 (air); 14 (ocean) |
| Pallet dimensions (W x D x H) | 120 x 100 x 14 cm |
| Physical security | 1 nano security lock slot |
| Ports | 1 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate (charging); 1 HDMI 2.1; 2 DisplayPort™ 1.4; 1 RJ-45 (2.5 GbE) |
| Power | 120 W external power adapter |
| Power button type | Mechanical power button with RGB LED indicator to power or wake host system |
| Power delivery (PD) profiles | 12V/5A; 15V/5A; 20V/5A; 5V/3A; 9V/3A |
| Power to host | Up to 100 W via Thunderbolt™ 4 (both HP and non-HP host devices) |
| Products per pallet | 168 (air); 392 (ocean) |
| Products per pallet layer | 28 |
| Refresh rate (maximum) | 360 Hz |
| Registration required | No |
| Resolution (maximum) | Up to 8K |
| Security management | HP Sure Start |
| Software included | HP Quick Connect |
|---|---|
| Software included footnote number | [10,12] |
| Storage altitude | -15 to 12,192 m |
| Sustainable impact specifications | 35% post-consumer recycled plastic |
| UNSPSC code | 43211602 |
| UPC number | 1.98415E+11 |
| Weight | 740 g |
