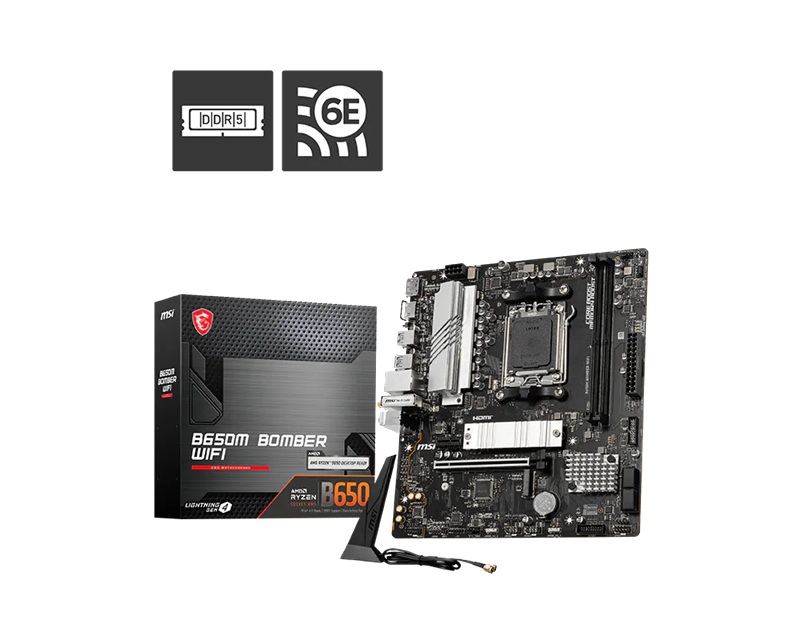

MSI B650M BOMBER WIFI AMD AM5 MATX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 4x SATA, 6x USB 2.0

MSI B650M BOMBER WIFI AMD AM5 MATX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 4x SATA, 6x USB 2.0

Socket AM5

Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports AMD EXPO™

1x DisplayPort

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

Supports DP1.4, maximum resolution of 4K 60Hz*

• Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT

1x PCI-E x16 slot

• Supports x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4 (For Ryzen™ 8500/ 8300 Series processors)

1x PCI-E x1 slot

PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices

4x SATA 6G

• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor

4x USB 2.0 (Front)

3x USB 5Gbps Type A (Rear)

1x USB 5Gbps Type C (Rear)

4x USB 5Gbps Type A (Front)

226mmx243.84mm
