MSI B850 GAMING PLUS WIFI, AM5, B850, DDR5 8200+OC, PCIe 5.0, M.2 Gen5/Gen4, WiFi 7, 5Gb LAN, USB 10G/5G, SATA, 7.1 Audio, 2yr wty

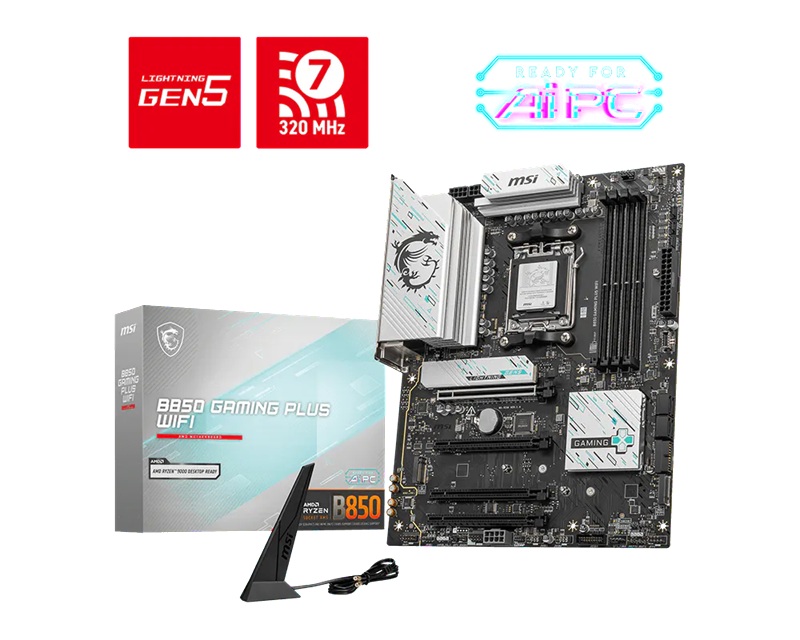

MSI B850 GAMING PLUS WIFI

SPECIFICATION

Model Name B850 GAMING PLUS WIFI

CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

CPU Socket AMD Socket AM5

Chipse t AMD B850 Chipset

Expansion slot

1 x PCIe 5.0 x16 slot,

1 x PCIe 4.0 x16 slot,

2 x PCIe 3.0 x1 slots

Display Interface

Support 4K@60Hz as specified in DisplayPort 1.2 HBR

– Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR5 - 8200+ MT/s (OC)

Storage

1 x M.2 Gen5 x4 128Gbps slot,

1 x M.2 Gen4 x4 64Gbps slot,

1 x M.2 Gen4 x2 32Gbps slot,

4x SATA 6Gbps ports

USB ports

3 x USB 10Gbps (1 Type-A + 2 Type-C),

6 x USB 5Gbps (5 Type-A + 1 Type-C)

8 x USB 2.0

LAN Realtek® 5Gbps LAN

WIFI / BT Wi-Fi 7 Solution, Bluetooth 5.4

Audio 8-Channel (7.1) HD Audio with Audio Boost
