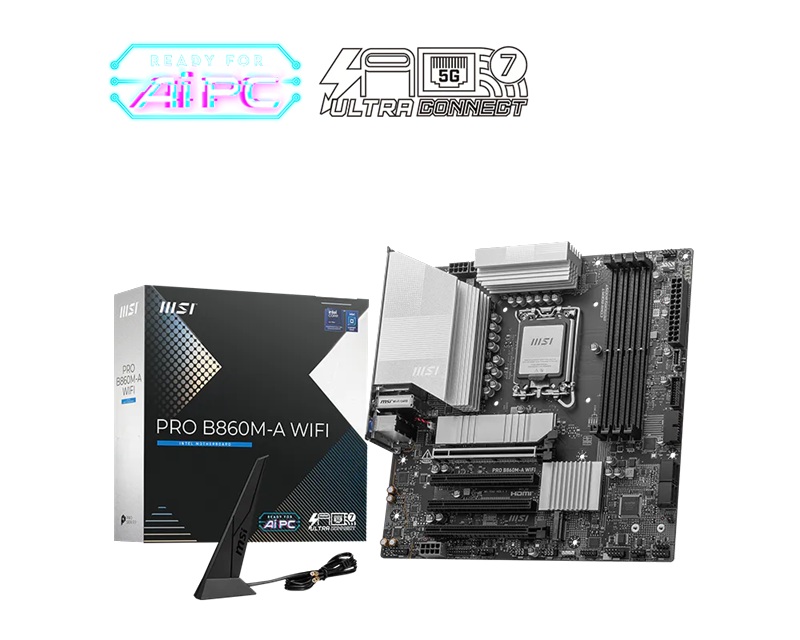

MSI PRO B860M-A WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16 slot, 3x M.2, 4x SATA, 6x USB 2.0, Intel® Wi-Fi 7

MSI PRO B860M-A WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 4x PCI-E x16 slot, 3x M.2, 4x SATA, 6x USB 2.0, Intel® Wi-Fi 7

Chipset

INTEL B860

CPU

Supports Intel® Core™ Ultra Processors (Series 2)

LGA 1851

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics

1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DisplayPort 1.4, maximum resolution of 4K 60Hz*

1x Type-C DisplayPort

Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

Slot

4x PCI-E x16 slot

Audio

Realtek® ALC897

• 1-Channel High Definition Audio

Storage

3x M.2

4x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Onboard Thunderbolt

1x Thunderbolt4 ports (Rear)

Supports up to 40Gbps transfer rate with Thunderbolt devices

Supports up to 20Gbps transfer rate with USB4 devices

Supports up to 10Gbps transfer rate with USB 3.2 devices

Supports up to 5V/3A,15W power charging

Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices

Supports up to 8K display

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

1x USB 5Gbps Type C (Rear)

4x USB 5Gbps Type A (Front)

1x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

LAN

Realtek® 8126-CG 5G LAN

WIRELESS LAN & BLUETOOTH

Wi-Fi 7

Supports Bluetooth® 5.4**, MLO, 4KQAM

LED FEATURE

4x EZ Debug LED

OPERATING SYSTEM

Support for Windows® 11 64-bit

• 84mmx243.84mm
