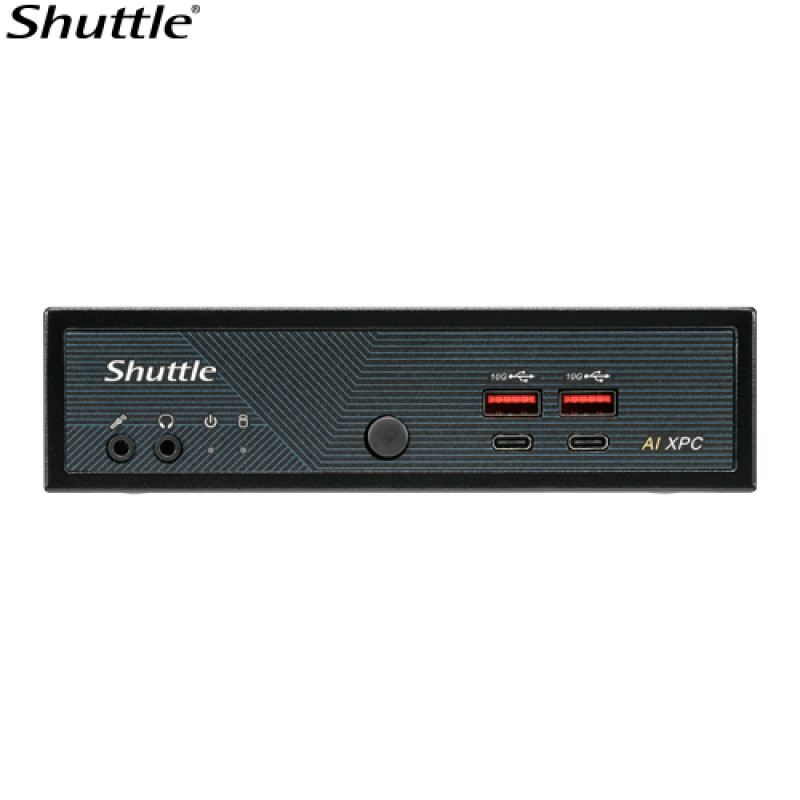

Shuttle AI XPC, Intel ® Meteor Lake Core Ultra 5 125H processor, 2x DDR5, 3x M.2 2280, 2x HDMI, 2x DP, 8x USB, 4x 2.5G LAN, 1x M.2 2230
DDR5 5600 MHz
| VIDEO OUTPUT | HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs |
|---|
4K playback (Dual channel memory recommended)
Integrated in CPU
| AUDIO | Realtek ALC 888S High Definition Audio |
|---|
| ETHERNET | (4)Intel 2.5GbE LAN |
|---|
Support wake ON LAN (WOL) feature
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
|---|
NVMe interface
| ONBOARD CONNECTORS | (1) 4pin fan connector |
|---|
(1) Auto power on header
| FRONT PANEL | (2) USB 3.2 Gen2x2 TypeC ports |
|---|
(2) USB 3.2 Gen2 ports (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED
| BACK PANEL | (4) RJ45 LAN port w/LED |
|---|
(2) HDMI port TMDS Compatiible (2) Display port (4) USB 3.2 Gen2 ports (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock
19V 6.32A
| ACCESSORIES | XPC Multilanguage Quick User Guide |
|---|
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
120W adapter
| EXPANSION SLOT | (2) M.2 2280 M key socket for NVMe/SATA SSD |
|---|
(1) M.2 2280 M key socket for NVMe SSD/WWN04 (1) M.2 2230 Type E key socket for WIFI
| OS SUPPORT | Windows 11 64 bit O.S |
|---|
Linux
| OPERATING TEMPERATURE | 0?~50? |
|---|
