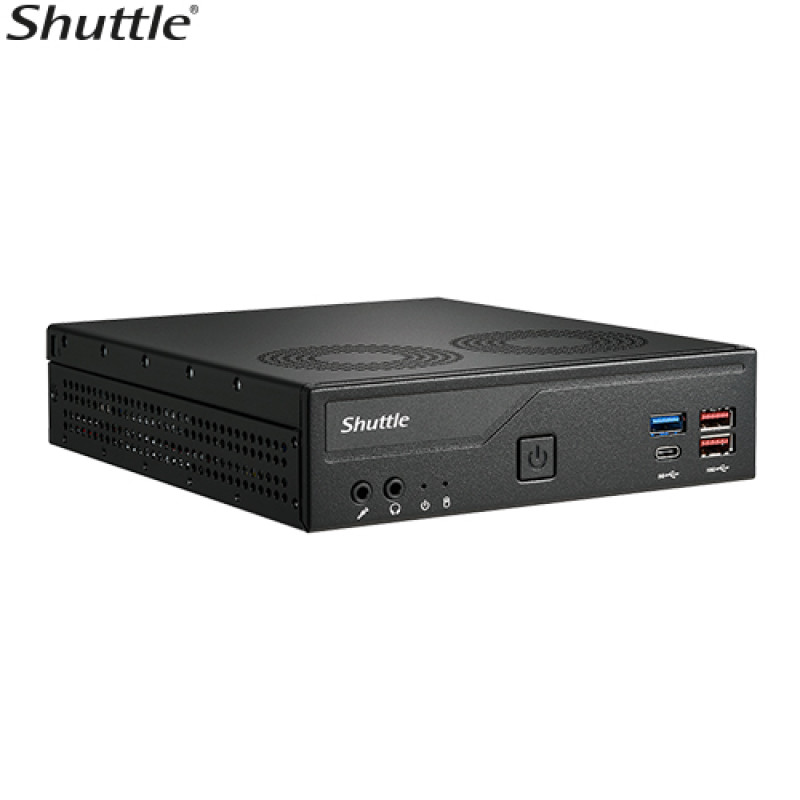

The Shuttle XPC Slim DH770 is a 1.3-liter Barebone Mini-PC featuring the H770 chipset, designed to support Intel® 12th, 13th, and 14th generation LGA1700 processors with a maximum TDP of up to 65W. Thanks to Intel® UHD graphics and dual DDR5-5600 support, the DH770 delivers enhanced graphics performance, faster memory access, and robust multitasking capabilities. It excels in AIoT Edge tasks, crystal-clear video streaming, and various demanding applications. Its compact design houses a wide array of I/O interfaces, including HDMI 2.0, DisplayPort 1.4, USB 3.2, COM (RS232/422/485), SATA 3.0, M.2 SSD, dual 2.5G LAN, and WLAN expansion. Whether utilized for a 4-display TV wall, interactive digital signage, NVR stations, or automation control, the DH770 offers exceptional versatility and reliability across various industries.
DDR5 5600 MHz
| VIDEO OUTPUT | HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs |
|---|
4K playback (Dual channel memory recommended)
Integrated in CPU
| AUDIO | Realtek ALC 888S High Definition Audio |
|---|
| ETHERNET | (2)Intel 2.5GbE LAN |
|---|
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
|---|
NVMe interface
Support SATA RAID 0,1
| ONBOARD CONNECTORS | (1) 4pin fan connector |
|---|
(1) VGA(For PVG01 use) (1) 1x4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header (1) RS232 voltage switch
| FRONT PANEL | (2) USB 3.2 Gen1 ports |
|---|
(Include Type C x1) (2) USB 3.2 Gen2 ports (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED
| BACK PANEL | (2) RJ45 LAN port w/LED |
|---|
(2) HDMI port (2) Display port (2) USB 3.2 Gen1 ports (2) USB 3.2 Gen2 ports (1) RS232 (1) RS232/RS422/RS485 (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock
| DRIVE BAYS | (1) 2.5' HDD / SSD bay |
|---|
| DIMENSIONS | 190(L) x 165(W) x 43(H) mm |
|---|
Dimension drawing
| POWER | 120W Power Adapter |
|---|
| Input | 100- 240V AC |
|---|
19V 6.32A
| ACCESSORIES | XPC Multilanguage Quick User Guide |
|---|
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapter
| EXPANSION SLOT | (1) M.2 2280 Type M key socket |
|---|
(1) M.2 2230 Type E key socket
| OS SUPPORT | Windows 11 64 bit O.S |
|---|
Linux
| REMARK | RS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide. |
|---|
| OPERATING TEMPERATURE | 0?~50? |
|---|
