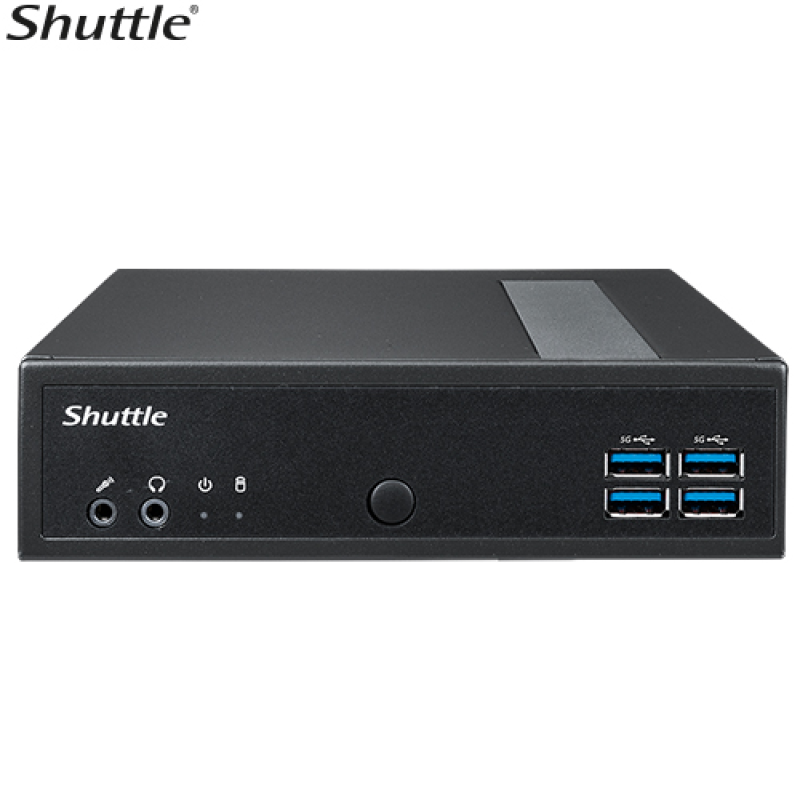

Shuttle DL40N XPC fanless Mini PC 1.3L Barebone - Intel® Twin Lake processorsN150 (4 Cores), DDR5, 8x USB, 2x 2.65W Adapter
| FORM FACTOR | 1.3L slim form factor |
|---|
| PROCESSOR | Intel® Twin lake-N up to 7W CPU |
|---|
Intel® Processor® N150 (DL40N)
| MEMORY | Support DDR5 4800Mhz SODIMM memory Max. 16GB |
|---|
| VIDEO OUTPUT | (1)HDMI 2.0b + (1)DisplayPort + (1)VGA video outputs |
|---|
Support triple independent display
Intel generation HD Graphic engine
| AUDIO | 2 channel High Definition Audio |
|---|
| ETHERNET | Intel I226-LM Dual LAN controller |
|---|
Supports 10Mb/s,100Mb/s,1Gb/s,2.5Gb/s operation
Support wake ON LAN (WOL) feature
| STORAGE INTERFACE | SATA for HDD/SSD |
|---|
| FRONT PANEL | (1) Power button |
|---|
(1) Power Led (1) HDD Led (4) USB 3.2 Gen1 ports (1) MIC-IN (1) Audio out
| BACK PANEL | (2) Intel® 2.5GbE LAN w/LED |
|---|
(1) Display port (1) HDMI port (4) USB 3.2 Gen1 ports (1) DC in (1) RS232/RS422/RS485 (1) RS232 (1) VGA (1) External power on/Clear CMOS header (2) Antenna Hole
XPC DVD Driver
VESA screw pack
VESA bracket
65W adapter
Screw pack
Power cord
| EXPANSION SLOT | (1) M.2 Type M (2280) |
|---|
(1) M.2 Type E (2230)
| OS SUPPORT | Windows 11 64 bit O.S |
|---|
