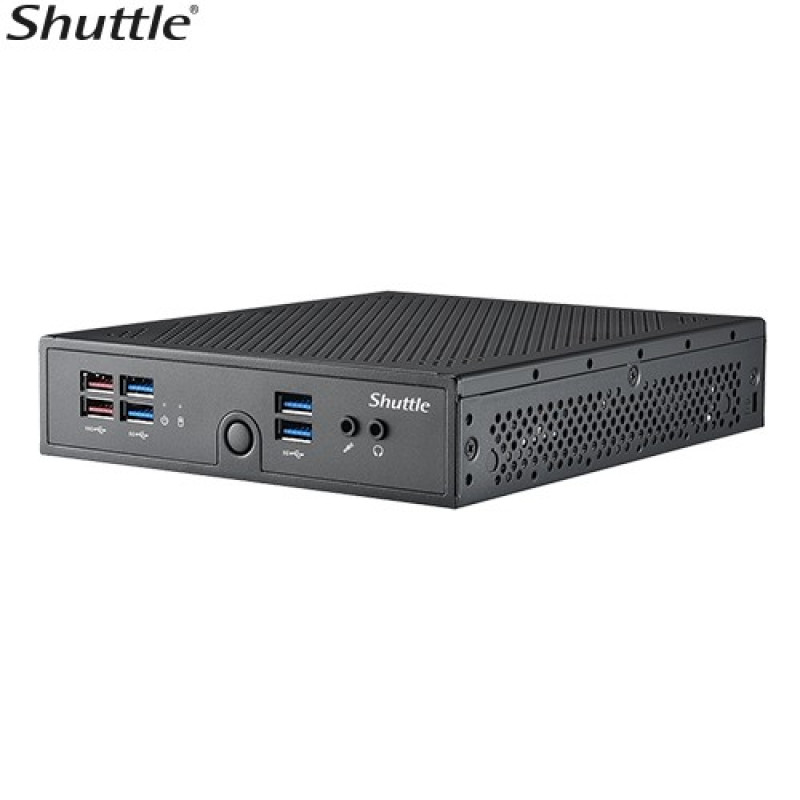

Shuttle's latest fanless model, the DS50U, supports the cutting-edge 13th Gen Intel® Raptor Lake-U processor, and enables dual-channel up to DDR5-5200 memory. With Iris® Xe or UHD integrated graphics based on processor SKUs, the DS50U can enhance multitask performance and handle a variety of digital applications effortlessly. Despite its compact 1-liter volume, this device features a rich array of I/O connectors, including eight USB ports, SATA 3.0, dual M.2 slots, and one M.2 E slot for expandability, enabling users to install various peripherals. Additionally, it supports triple displays via HDMI 2.0b, DisplayPort, and VGA. The DS50U is well-suited for a wide range of business applications, including IoT gateways, smart digital signage, automation control, edge computing, interactive kiosks, and more.
Dual Channel DDR5 up to 5200Mhz
| VIDEO OUTPUT | (1)HDMI 2.0b + (1)DisplayPort 1.4 + (1) VGA video outputs |
|---|
Support triple independent display
2 channel High Definition Audio
| ETHERNET | (1)Intel GbE Lan / (1)Intel 2.5 GbE Lan |
|---|
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function
Support Teaming function
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
|---|
NVMe interface
| ONBOARD CONNECTORS | (1) 2.5 inch SATA connector |
|---|
(1) USB2.0 header (1) Auto Power on Jumper (1) RS232 voltage switch (1) External 4 pin header
| FRONT PANEL | (1) Power on button |
|---|
(1) Power LED (1) HDD LED (2) USB 3.2 Gen2 (4) USB 3.2 Gen1 (1) Mic in (1) Headphone out
(1) HDMI (1) DisplayPort (1) VGA (1) RS232/RS422/RS485 (2) USB 2.0 (1) External 4 pin header (Clear CMOS/Power Switch/5V) (1) DC-in (1) Kensington lock (2) Antenna fixture
| DRIVE BAYS | (1) 2.5' HDD / SSD bay |
|---|
| DIMENSIONS | 200(L) x 165(W) x 39.5(H) mm |
|---|
XPC DVD Driver
Food stand
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
90W adapter
| EXPANSION SLOT | (2) M.2 2280 Type M key socket |
|---|
(1) M.2 2230 Type E Key socket
Linux
| GRAPHICS | Intel® UHD Graphics |
|---|
(Feature depends on processor)
