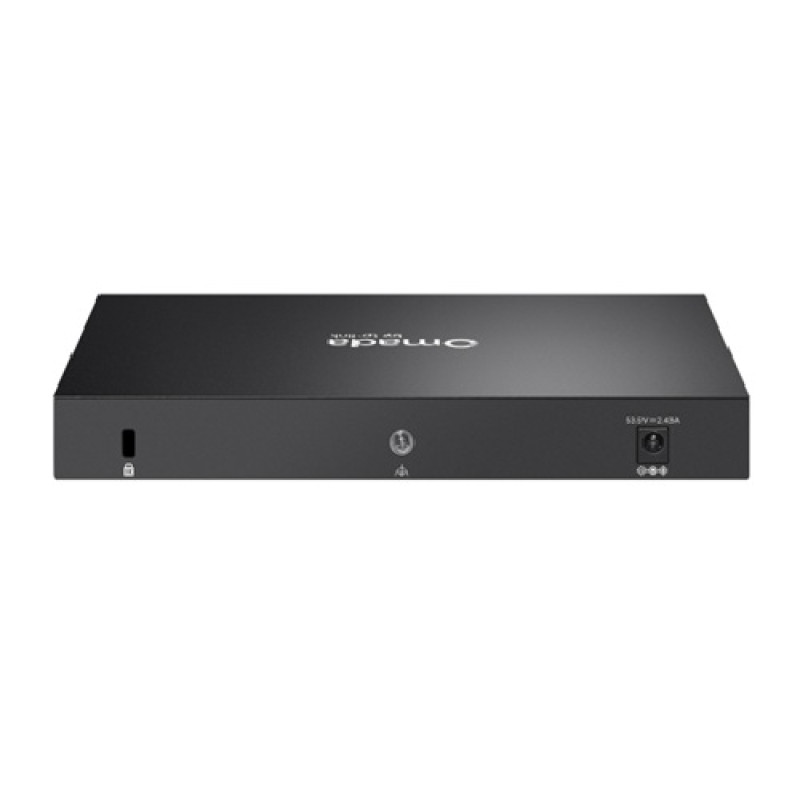

TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch

TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch

HARDWARE FEATURES

Interface
• 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)
• 1× 10 Gbps SFP+ Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
•Fanless
Installation
• Desktop
• Wall Mount
Physical Security Lock
•?
Power Supply
•DC Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)
• Standard: 802.3af/at/bt PoE++ compliant
• PoE Ports: 4 Ports
• PoE Budget: 120W available for all PoE++ ports, 90W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
Dimensions ( W x D x H )
•8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
Surge Protection
•±6 kV

PERFORMANCE

Packet Buffer Memory
•640 KB
Jumbo Frame
•10 KB
Switching Capacity
•45 Gbps
Packet Forwarding Rate
•33.48 Mpps
MAC Address Table
•16K

SOFTWARE FEATURES

Quality of Service
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method
•Store-And-Forward

Warranty Period: 5-Year
